Joule Thief - Falstad

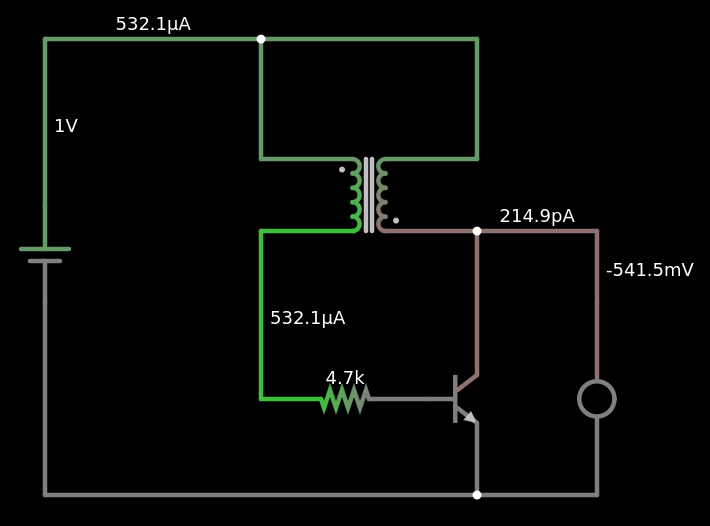

Fig 1:

Fig 2:

  1. Copy text below
  2. Go to Falstad.com
  3. Click File -> Import From Text...
  4. Paste text and clik [OK]
    5.
$ 1 0.000005 0.026359713811572677 12 5 50 5e-11
T 304 160 448 208 4 0.00009999999999999999 1 0.00036049826846965005 0.0007187654347451389 0.999
t 416 320 448 320 0 1 0.5691804909558271 0.43748603589799234 300 default
w 448 208 448 304 0
v 160 256 160 192 0 0 40 1 0 0 0.5
w 160 256 160 384 0
w 160 384 448 384 0
w 448 384 448 336 0
r 304 320 416 320 0 4700
w 304 208 304 320 1
w 160 192 160 80 2
w 160 80 304 80 1
w 304 80 304 160 0
w 448 160 448 80 0
w 448 80 304 80 0
w 448 208 528 208 1
w 528 208 528 256 2
w 528 384 448 384 0
34 fwdrop\q3.5 0 4.131143077955446e-30 0 2 0 0
162 528 256 528 384 3 fwdrop\q3.5 1 1 1 0.01
o 3 64 0 4099 2.5 0.4 0 2 3 3
o 17 64 0 4099 5 0.2 1 2 17 3
