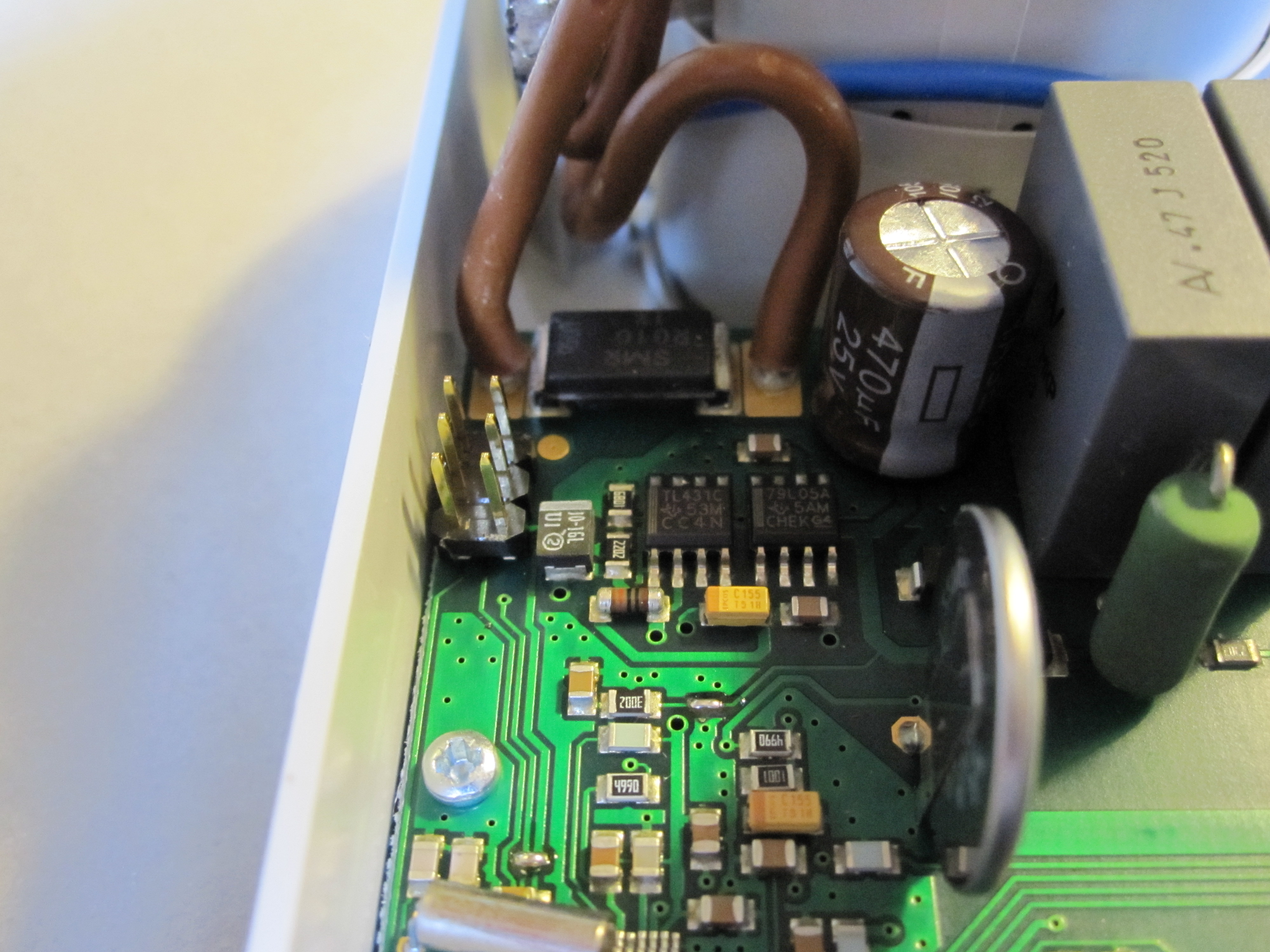

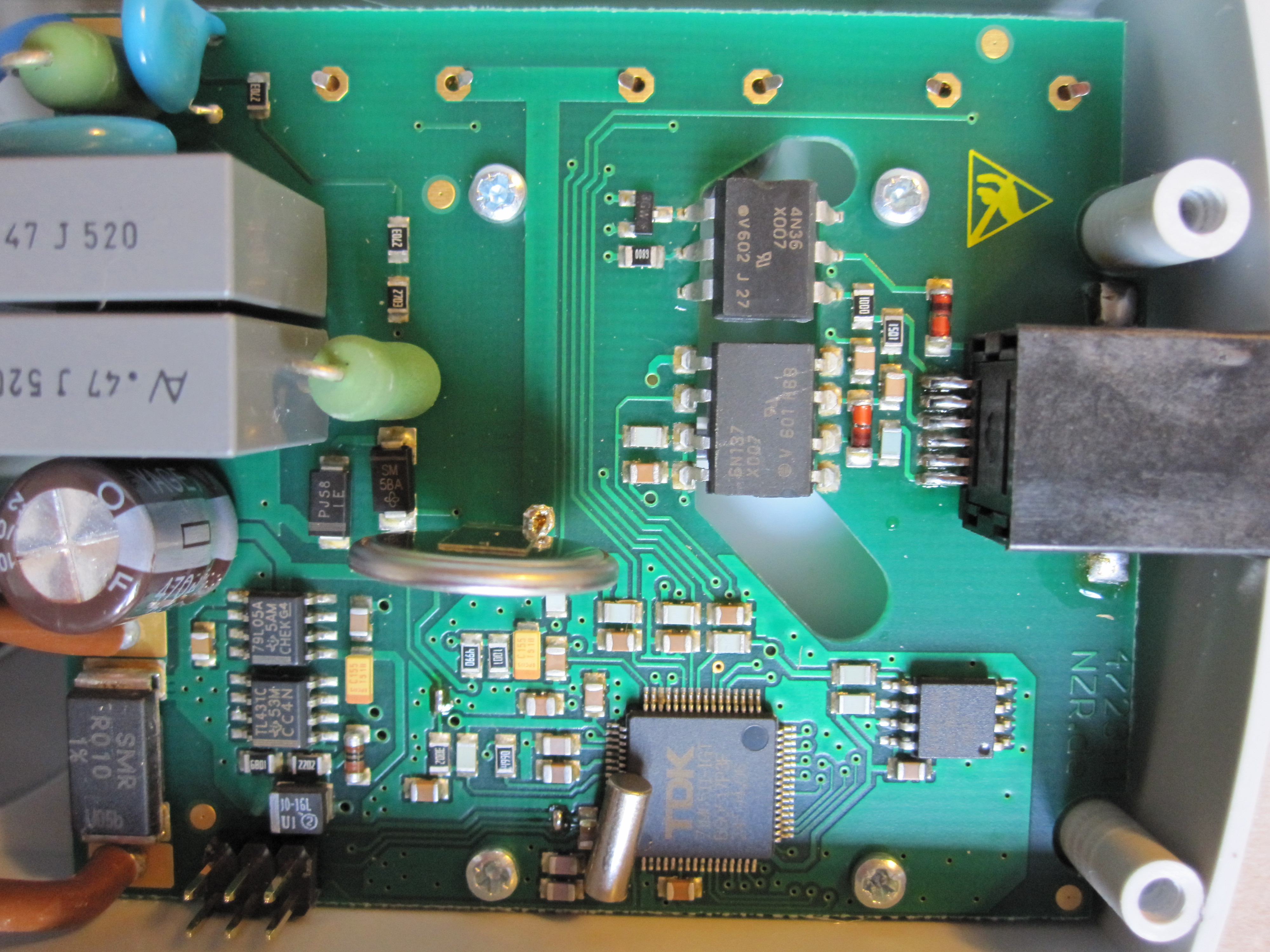

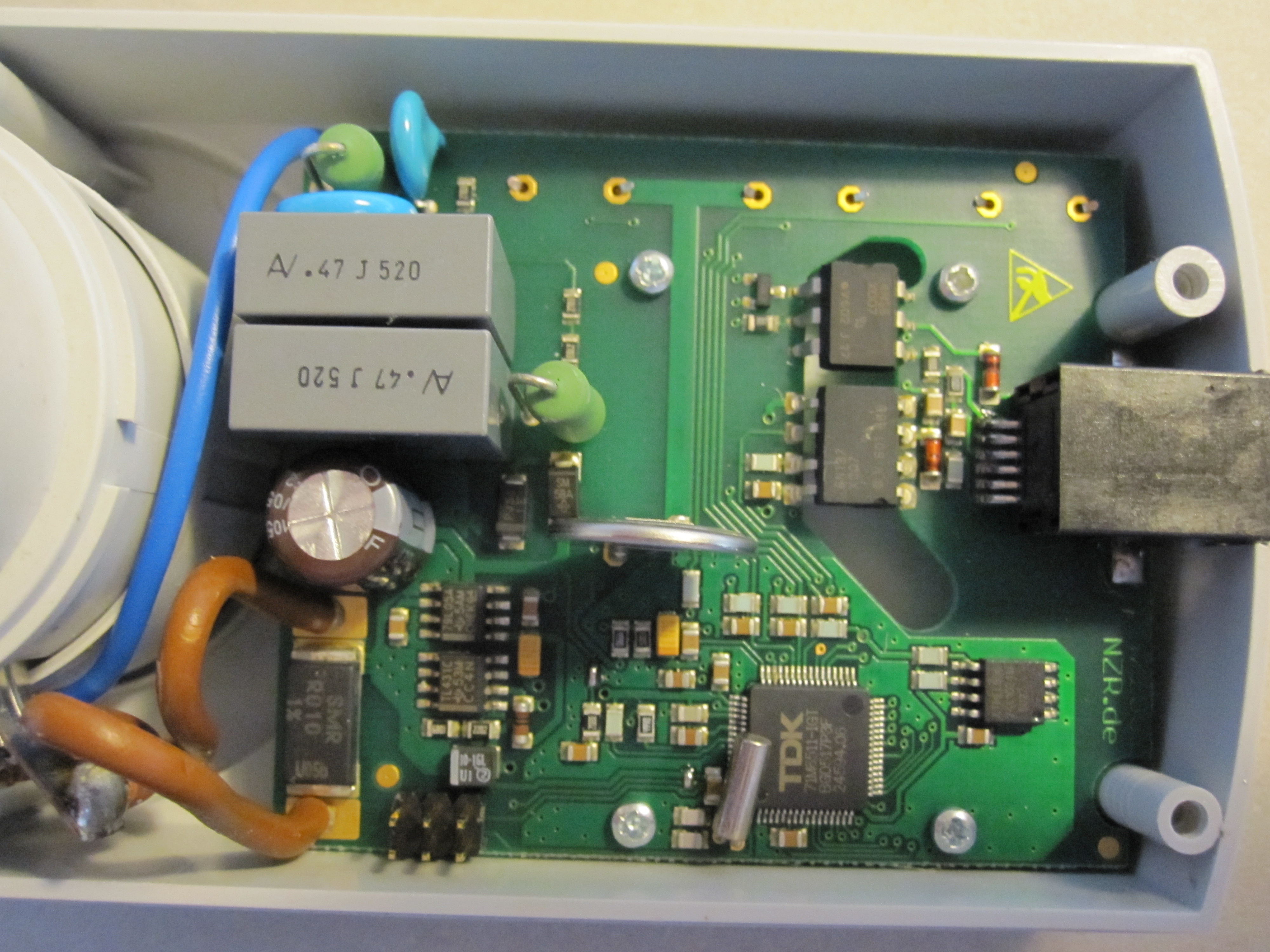

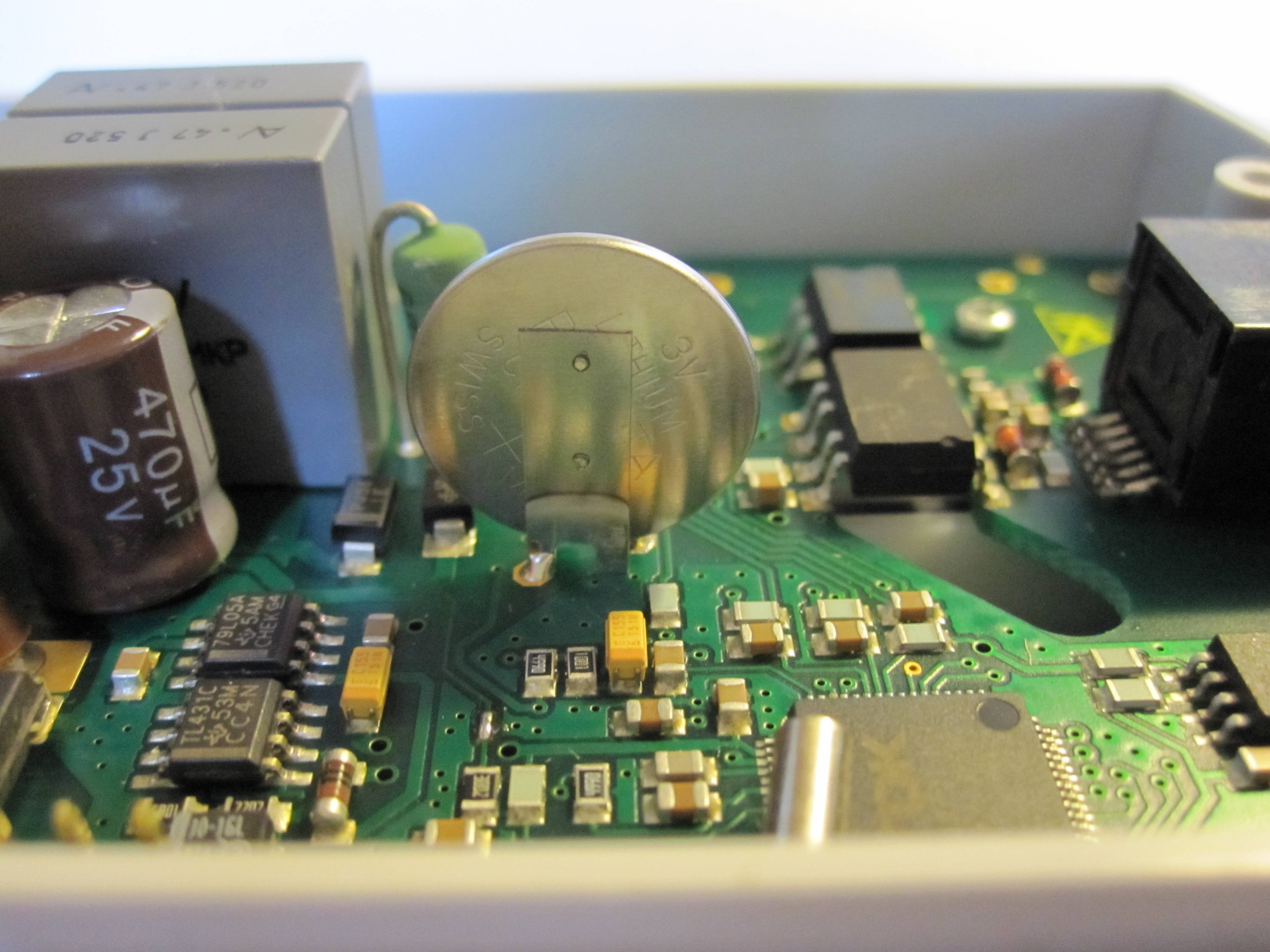

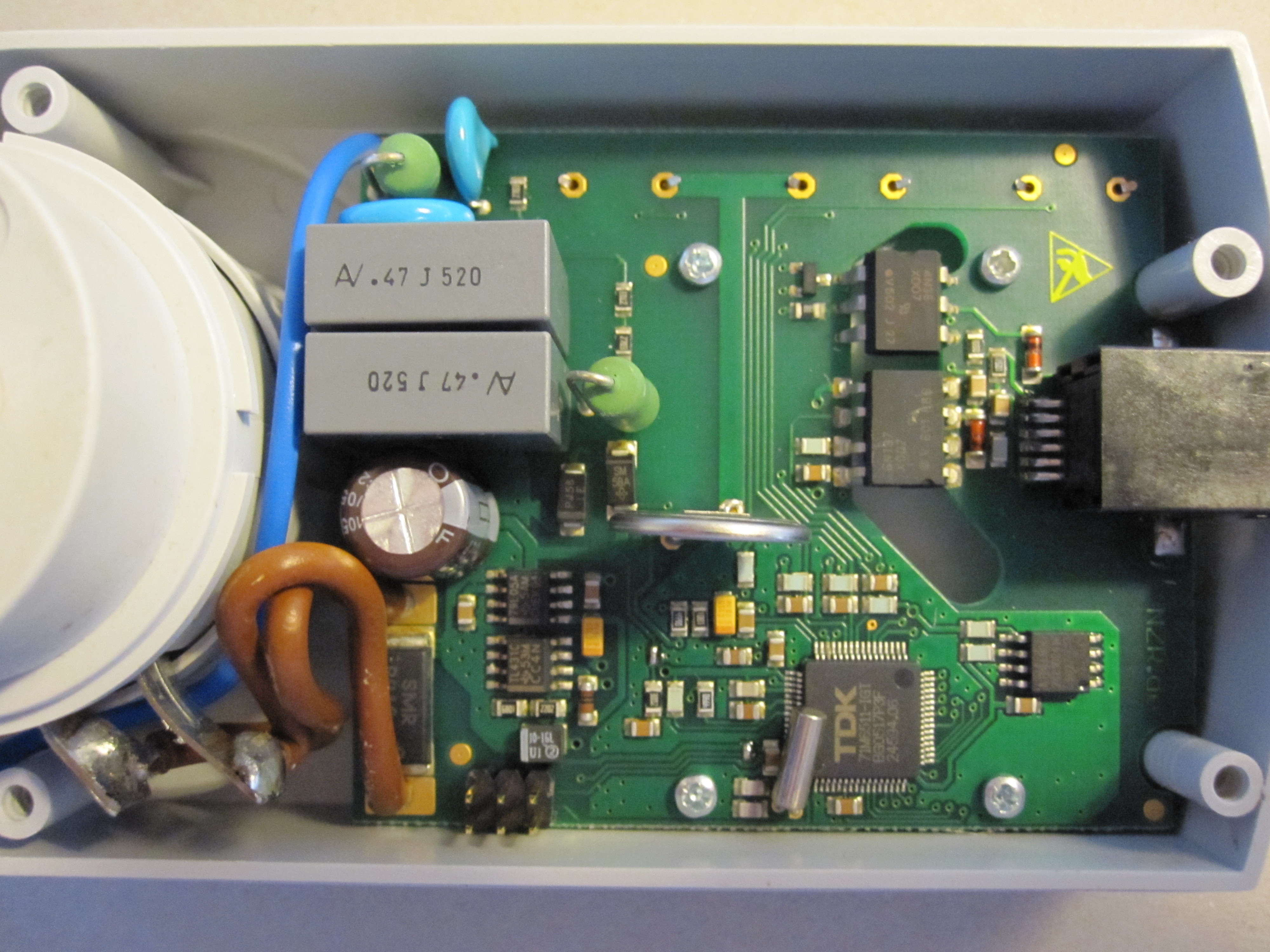

Pictures

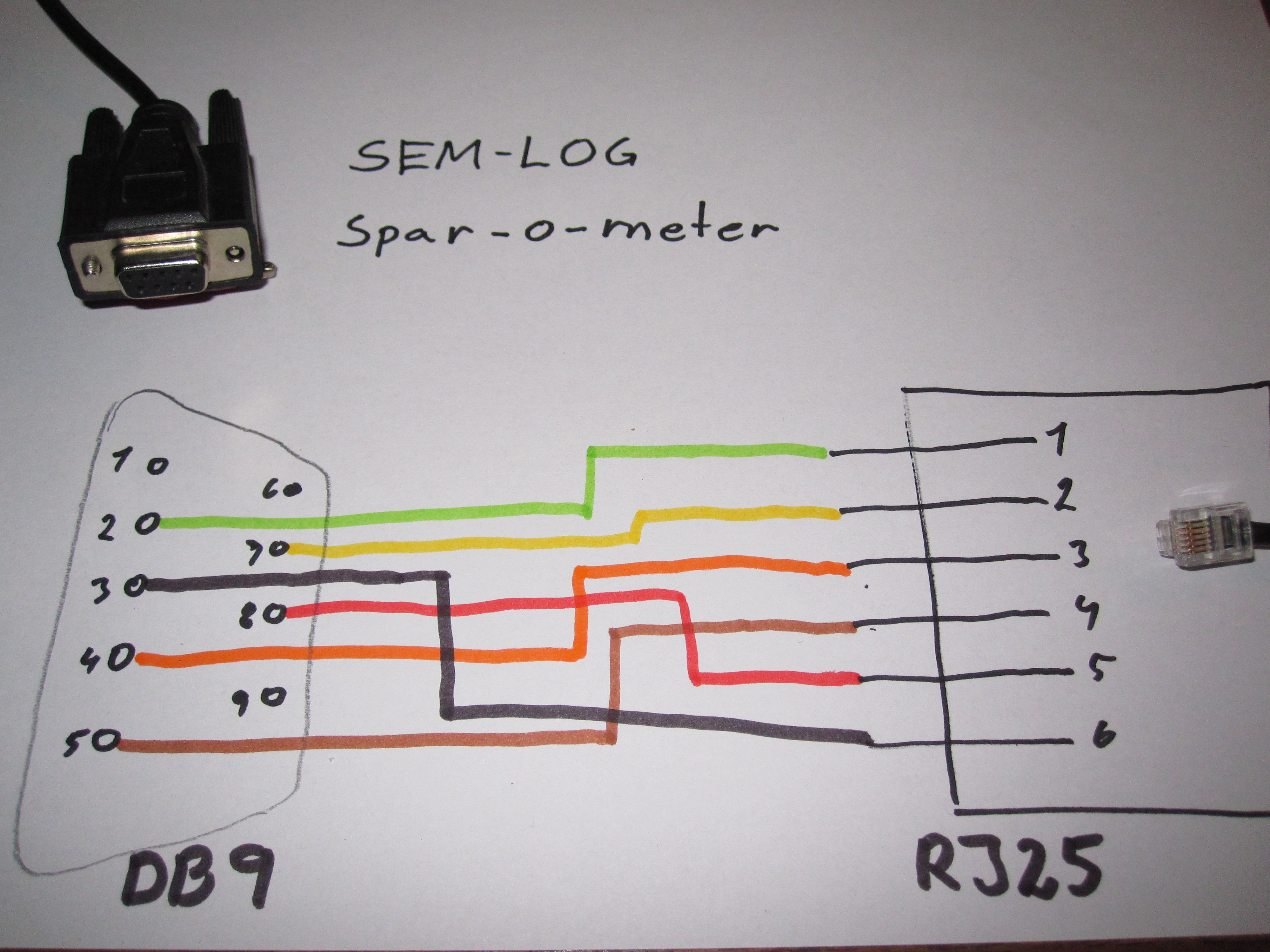

Spar-o-meter/SEM-LOG data cable pin out

Name DE-9 RJ25 Receive data RxD 2 1 Request to send RTS 7 2 Data terminal ready DTR 4 3 Signal ground GND 5 4 Clear to send CTS 8 5 Transmit data TxD 3 6
